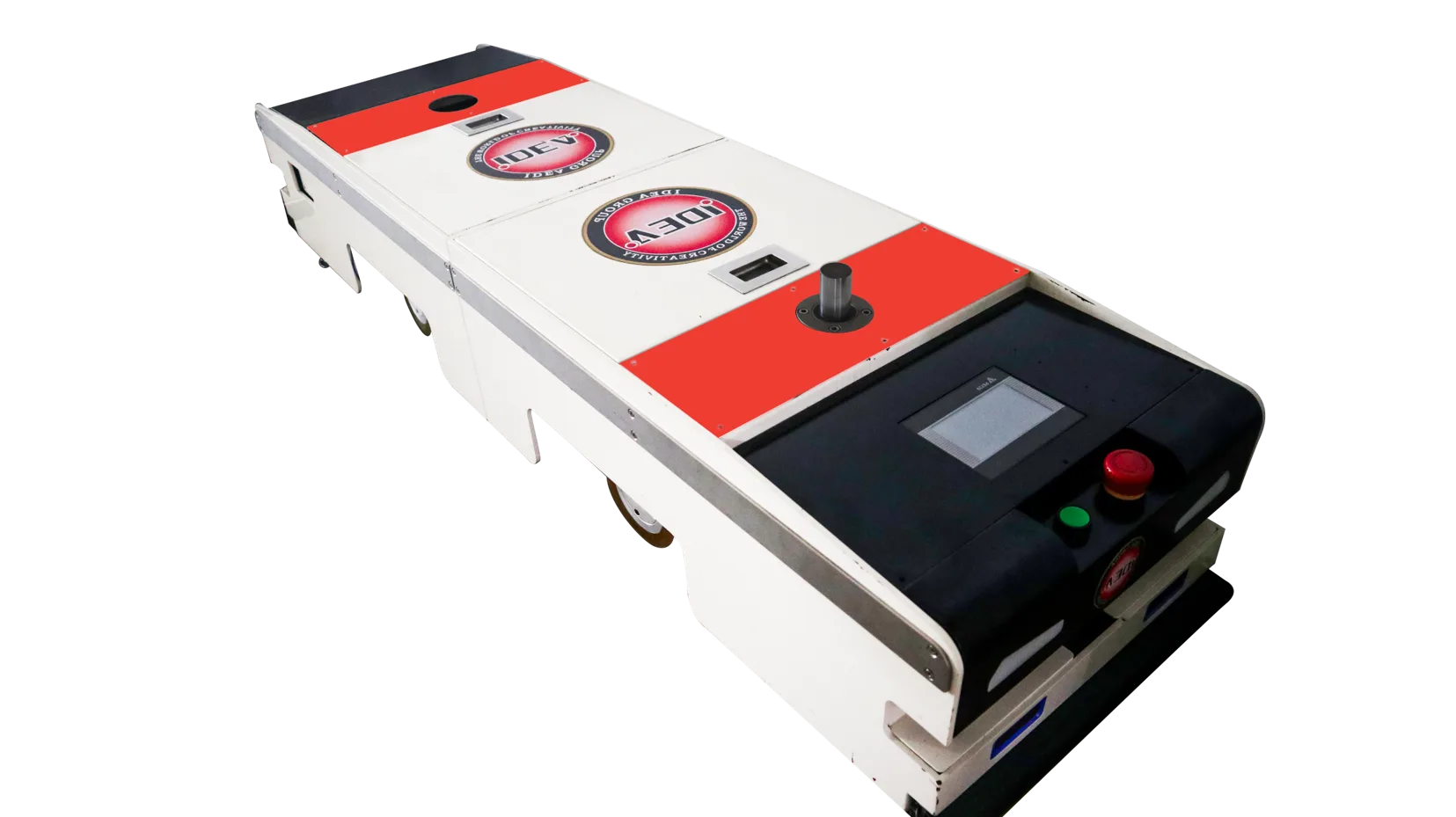

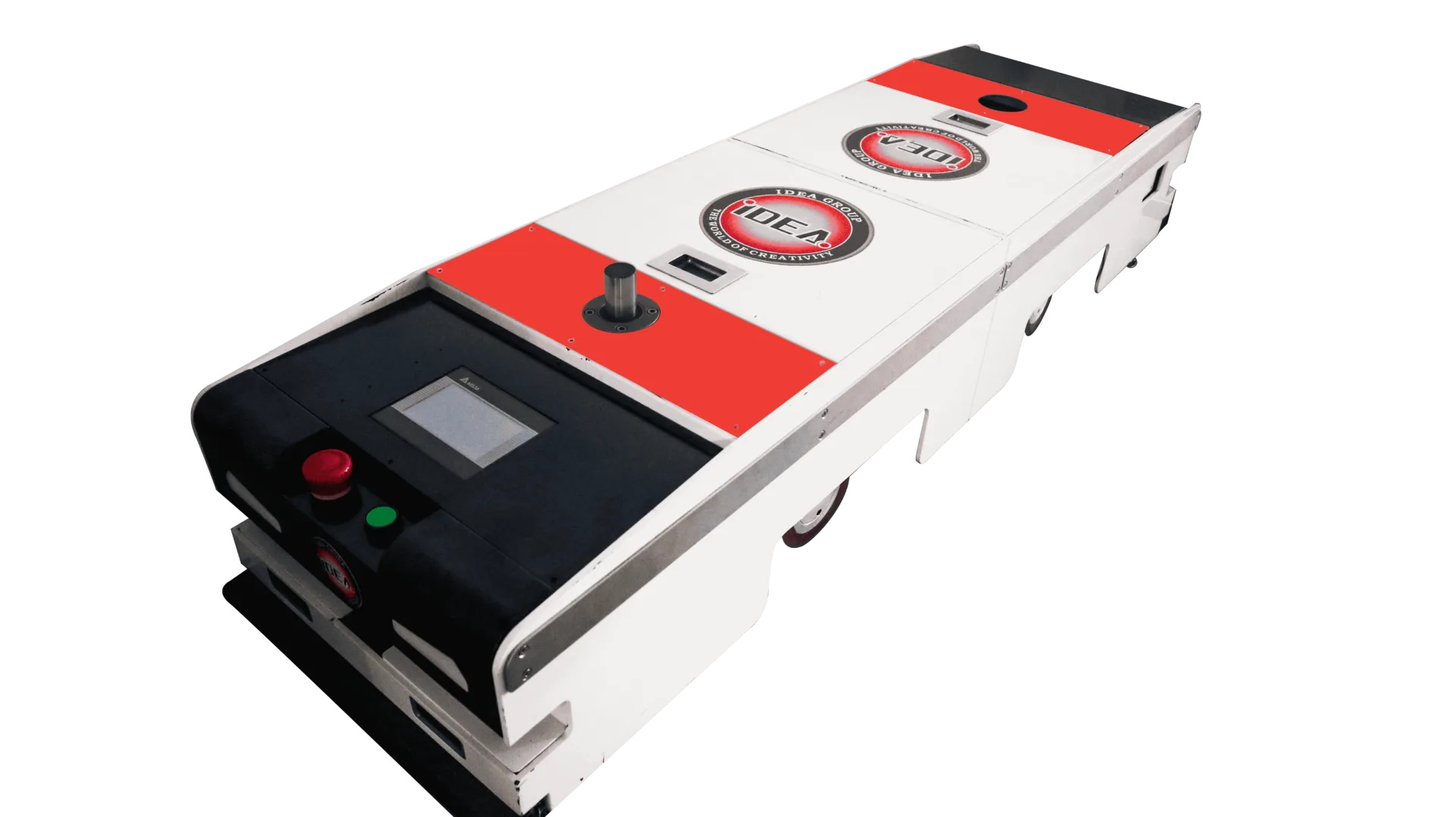

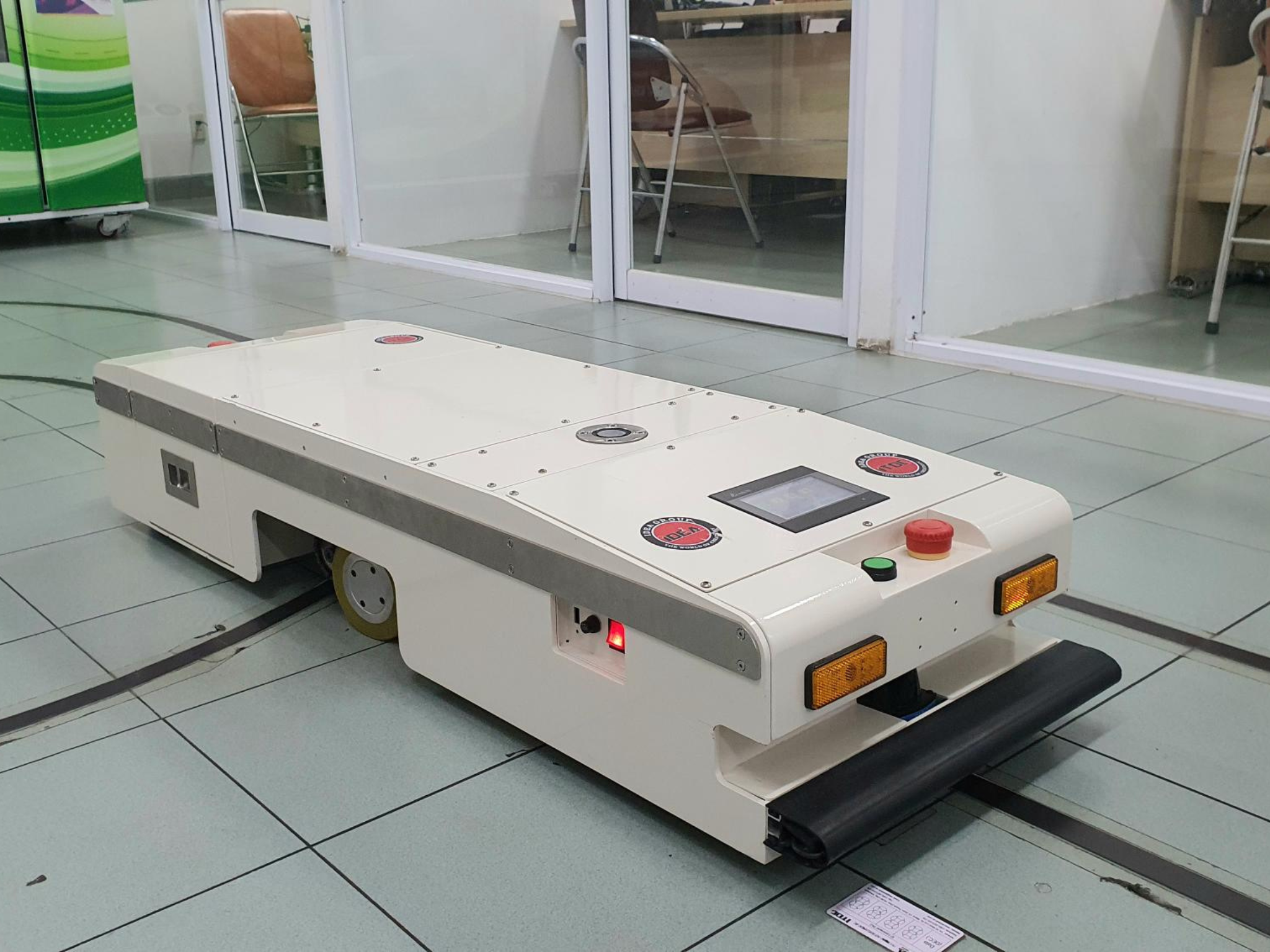

Xe tự hành IGR-UPA được thiết kế nhỏ gọn, gầm siêu thấp và tải trọng lớn, mang đến giải pháp vận chuyển tự động hiệu quả về chi phí cho nhà máy.
Nhờ thiết kế module tiên tiến, dòng IGR-UPA có nhiều cấu hình khác nhau. Người dùng có thể yêu cầu nâng cấp từ AGV một chiều sang AGV hai chiều khi cần. Chiều cao và chiều dài xe có thể tùy chỉnh theo yêu cầu.
| Series | Ultra Low Profile AGV IGR-UPA | |
| Model | IGR-UPA1 | IGR-UPA2 |
| Number of Actuators | Single | Dual |
| Guide Method | Magnetic | |
| Command Method | RFID Tag | |
| Manual Running Direction | Forward, Backward, Turning | |
| Dimension (WxLxH)(mm) | 420x1260x250 | |
| Payload up to (kg) (*) | 500 | 1000 |
| Speed up to (m/min) (*) | 50 | 25 |
| Runtime up to (hours) (**) | 16 | |
| Recharge time (hours) | 6 | |
| Stop Accuracy | ± 10 mm | |
| (*) It’s recorded under test conditions. Actual payload and speed are inversely proportional
(**) The actual runtime depends on the vehicle’s load and the state of the battery |
||
